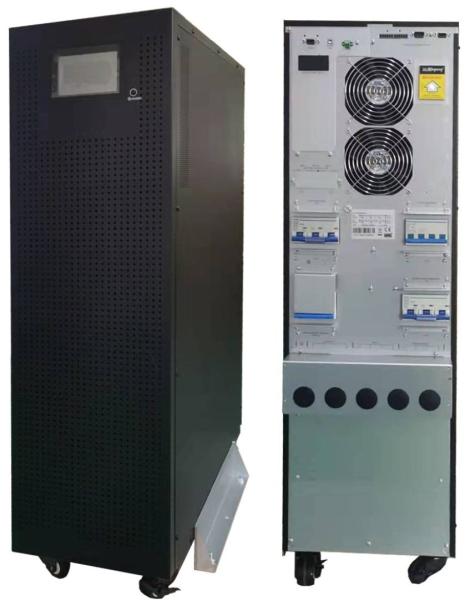

HIGH-FREQUENCY 3/3 SERIES 3C310-200K
Interface Management Function
The LCD display records UPS operating status and parameter information in real time, facilitating user management of the UPS.
High Environmental Adaptability Function
Circuit boards are housed in a fully enclosed space with "triple-proof" (dustproof, moisture-proof, corrosion-proof) coating, making them suitable for harsh environments such as tunnels and squares.
Network Monitoring Function
Via RS232/RS485 communication interfaces and SNMP network adapters, combined with UPS intelligent monitoring software, the system can communicate with computers. All UPS parameters are clearly displayed on the communication interface.
Product Features
High-reliability design
True dual-conversion technology
DSP technology ensures high performance
Output power factor of 1.0
Full-range active power factor correction
50Hz/60Hz frequency converter mode
Energy-saving ECO mode operation
Emergency power off (EPO) function
Generator compatibility
Dual AC input
Supports parallel operation of up to 6 units with shared batteries
3-stage charging design optimizes battery performance
Adjustable number of batteries
Standard maintenance bypass
Walk-in power function
Optional isolation transformer
PARAMETERS
| Parameter / Model |
EX3C3-10kVA |
EX3C3-20kVA |
EX3C3-30kVA |
EX3C3-40kVA |
EX3C3-60kVA |
EX3C3-80kVA |
EX3C3-100kVA |
EX3C3-120kVA |
EX3C3-160kVA |
EX3C3-200kVA |
| Phase |
3 Phase + Neutral (3PH+N) |
| Capacity |
10kVA/9kW |
20kVA/18kW |
30kVA/30kW |
40kVA/40kW |
60kVA/60kW |
80kVA/80kW |
100kVA/100kW |
120kVA/120kW |
160kVA/160kW |
200kVA/200kW |
| INPUT |
| Input Voltage |
3 x 380/400/415 VAC (3PH+N) |
| Voltage Range |
190-520VAC (3 Phase) @ 50% load; 305-478VAC (3 Phase) @ 100% load |
| Frequency Range |
40-70Hz |
| Power Factor |
≥ 0.99 @ 100% load |
| Input Current THD |
< 1% @ 100% linear load; < 3% @ 100% non-linear load |
| OUTPUT |
| Output Voltage |
3 x 360/380/400/415 VAC (3PH+N) |
| Voltage Stability (Batt) |
±1% |
| Frequency (Sync Range) |
46-54Hz or 56-64Hz |
| Frequency (Battery Mode) |
50/60Hz ±1% |
| Crest Factor |
9 |
| THD |
≤ 1% THD (linear load); ≤ 3% THD (non-linear load) |
| TRANSFER TIMES |
| Mains to Battery |
0ms |
| Inverter to Bypass |
0ms |
| Waveform (Battery Mode) |
Pure Sine Wave |
| OVERLOAD |
100 ~ 110% 60min, 110 ~ 125% 10min, 125% ~ 150% 1min, >150% Immediate protection |
| Parallel Capability |
Up to 6 units |
| EFFICIENCY |
| Mains/ECO/Battery Mode |
96% |
| BATTERY |
| Battery Type |
Depends on applicant |
| Number of Batteries (Std) |
16-20 (Adjustable) Default 16 |
32-40 (Adjustable) |
| Float Charge Voltage |
±13.65V*N±1% (N=16-20) |
| Max. Charge Current |
1A-12A (Adjustable) |
2A-40A (Adjustable) |
3A-60A (Adjustable) |
|
| DISPLAY & INDICATION |
| LCD/TOUCH SCREEN Display |
UPS status, load capacity, battery capacity, input/output voltage, discharge time, fault indication |
| PHYSICAL |
| Dimensions DxWxH (mm) |
592x250x576 |
815x300x1000 |
974x600x1600 |
| Net Weight (kg) (Std/Long) |
38 |
40 |
65 |
66 |
98 |
113 |
200 |
265 |
| ENVIRONMENTAL |
| Operating Temperature |
0-40°C |
| Relative Humidity |
< 95% Non-condensing |
| Noise Level |
< 65dB @ 1 meter |
< 70dB @ 1 meter |
| CONTROL & MANAGEMENT |
| Intelligent RS-232/USB |
Windows 2000/2003/XP/Vista/2008, Windows 7/8/10, Linux, MAC |
| Optional SNMP Card |
Supports SNMP management and network management via optional card |
